Facebook Lead Ads to GoHighLevel: Fix Sync Errors Fast

1. Why the Native Integration Fails

The GoHighLevel native Facebook Lead Ads connector was built for simple, single-account use cases. It establishes an OAuth token between your Meta Business Manager and a specific GoHighLevel sub-account. The problem is structural: that connection can drop — expired tokens, a permissions change on the Meta side, or the page being moved to the New Pages Experience — and GHL does not always surface the failure loudly enough to catch before leads pile up. Your ads keep running, your leads keep submitting, and nothing arrives in the CRM until someone notices the pipeline went quiet.

For agencies managing multiple clients from a single Meta Business Manager, the problem compounds. The native connector maps one Facebook Page to one GoHighLevel sub-account. Route leads from a master page to several sub-accounts and the mapping breaks — leads either all land in one account or vanish into a failed sync with no alert.

The third failure point is custom field mapping. When your lead form asks qualifying questions — monthly ad spend, business type, location — Meta returns those answers inside a dynamic array, not as flat key-value pairs. The native connector maps the standard fields (name, email, phone) and drops everything else silently.

That fourth point catches more people than token expiry does. Meta requires the LeadConnector app to be explicitly assigned Leads Access under your Business Settings before any lead — first one or five-hundredth — will reach GoHighLevel at all, native connector or not. If a lead ad has been live for weeks with zero contacts showing up in GHL, check Leads Access before touching anything else.

2. The v1 Endpoint Trap Most Guides Miss

The custom field payload structure changed too. v1 accepted a flat customField object keyed by field name. v2 expects a customFields array, and it accepts either the field’s internal ID or — the simpler option — its key paired with a field_value, with no lookup step required. The corrected payload is in Step 4 below.

3. How the Webhook Bridge Fixes All of It

Replacing the native connector with a Make.com webhook bridge solves token expiry, multi-account routing, and custom field mapping at once. The webhook URL Make.com generates is a permanent endpoint — no OAuth handshake to renew. Meta sends the lead payload the instant a form is submitted, Make.com catches it, and your logic pushes it to whichever GoHighLevel sub-account you specify.

Because the connection is server-to-server, there’s no token-expiry clock running in the background. Every payload that hits the webhook is logged in Make’s execution history with a timestamp, the raw JSON, and the exact HTTP response from GoHighLevel — so when a client asks why one lead is missing, you can pull the record and show them precisely what happened instead of guessing.

4. Data Flow Architecture

Four stages: Facebook fires the lead payload, Make.com catches and processes it, the Iterator flattens the custom field array, and the GoHighLevel V2 API creates the contact record with every field intact.

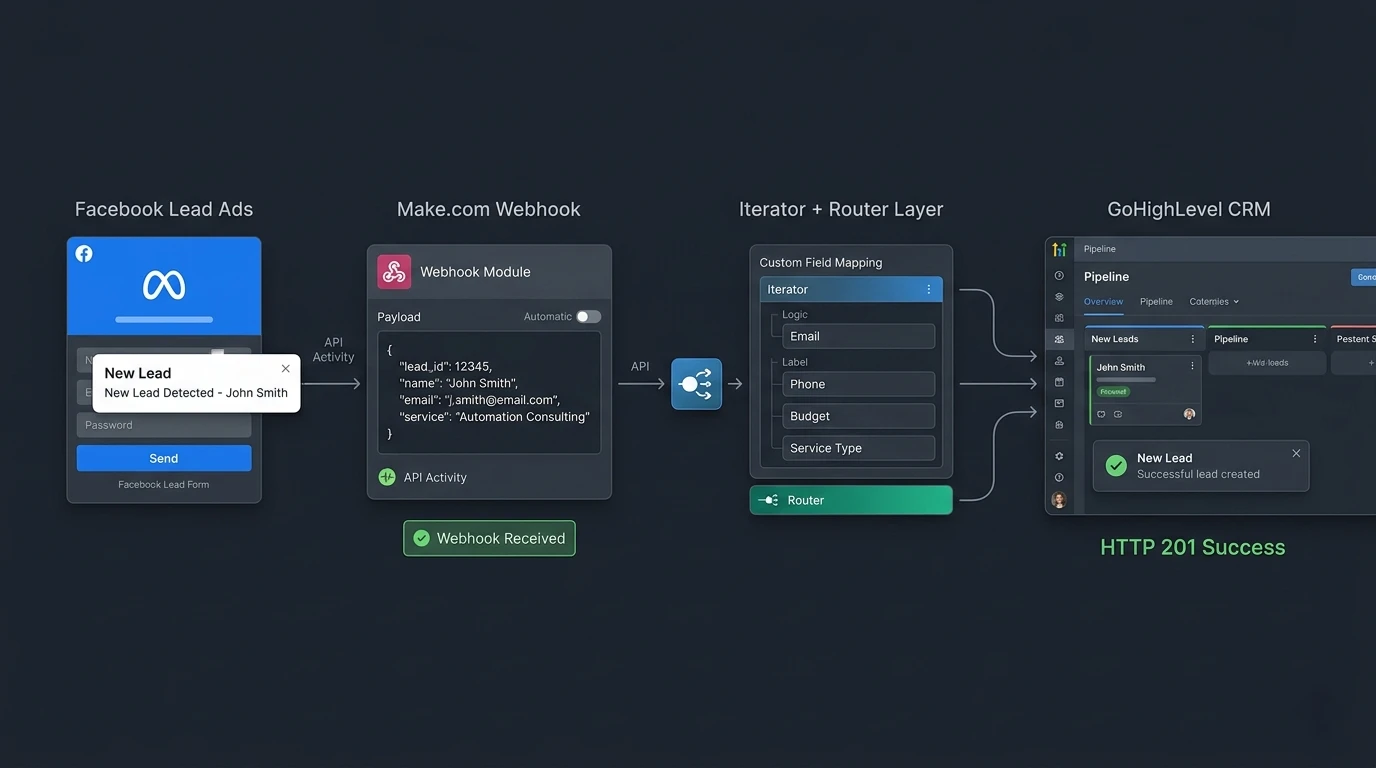

Facebook Lead Ads to GoHighLevel architecture using a Make.com webhook bridge and the V2 API.

5. Deployment Logic

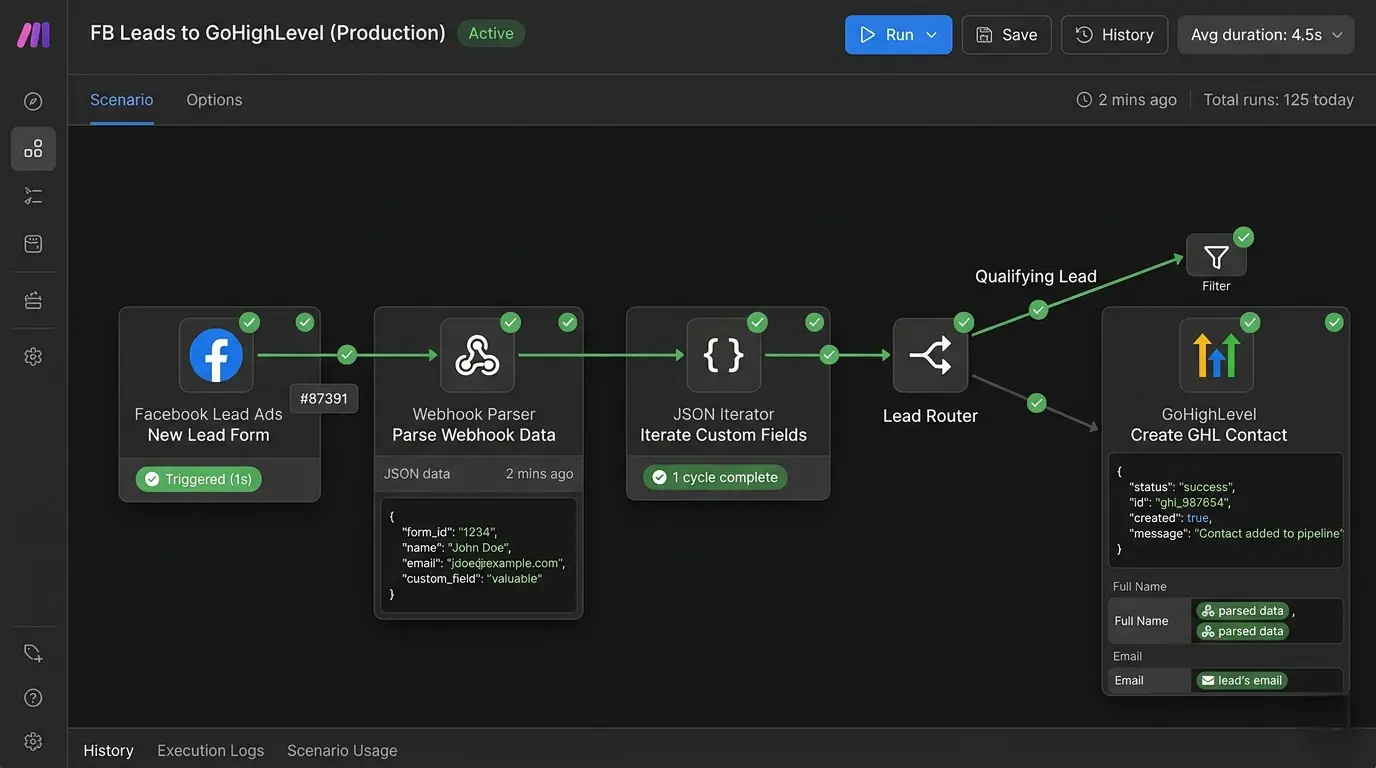

Live Make.com scenario routing Facebook Lead Ads directly into GoHighLevel via the V2 API.

Step 1 — Disconnect the Native Integration

Inside your GoHighLevel sub-account, go to Settings and locate the Facebook integration. Disconnect it completely. Leaving it active while running the Make.com webhook creates a duplicate-firing loop — the same lead lands twice, once from each path. Remove it before continuing.

Step 2 — Generate a Private Integration Token

GoHighLevel is phasing out standalone Agency/Location API keys for new accounts in favor of Private Integration Tokens, which are the recommended auth method for internal, single-account tooling like this pipeline (full OAuth 2.0 is meant for public Marketplace apps, which this isn’t). In your sub-account, go to Settings → Private Integrations, create a new integration, and scope it to write access on the Contacts endpoint. Copy the token — this is what goes in your Make.com HTTP module.

Step 3 — Configure the Make.com Webhook and Iterator

Create a new Make.com scenario starting with a Custom Webhook module — this is what catches the raw Meta payload, and it’s the piece that replaces the fragile native connector entirely. If your lead form includes custom questions, Meta packages those answers inside a field_data array where each item has a name key and a values array — a structure the native GHL connector can’t parse. Add an Iterator module pointed at field_data to break it into individual bundles you can map by name.

Step 4 — Execute the GoHighLevel V2 API Injection

Add an HTTP module set to POST, pointed at the current v2 endpoint, not the legacy one from Section 2. Reference the HighLevel Developer Portal for the full contacts schema. Your Private Integration Token goes in the Authorization header as a Bearer token, and the Version header is mandatory — this is the field that gets missed and produces a misleading auth error.

POST https://services.leadconnectorhq.com/contacts/
Authorization: Bearer YOUR_PRIVATE_INTEGRATION_TOKEN
Content-Type: application/json
Version: 2021-07-28

{
  "firstName": "{{1.first_name}}",
  "lastName": "{{1.last_name}}",
  "email": "{{1.email}}",
  "phone": "{{1.phone}}",
  "locationId": "YOUR_SUBLOCATION_ID",
  "customFields": [
    { "key": "monthly_ad_spend", "field_value": "{{3.value}}" }
  ]
}

Step 5 — Validate with Execution Logs

Submit a test lead through your Facebook form. In Make.com, open the scenario execution history and confirm the payload was caught, processed, and returned a 201 Created response from GoHighLevel. Check the GHL contact record to confirm custom fields populated — and confirm you’re not silently hitting the old v1 domain if you copied a payload from an older tutorial.

6. System Failure Handling

Production environments surface API friction at specific thresholds. These are the failure modes you’ll actually hit and the exact fix for each.

• 429 Too Many Requests: GoHighLevel enforces a burst limit of 100 requests per 10 seconds and a daily cap of 200,000 requests, both measured per app per Location. For bulk imports or high-volume campaigns, insert a Sleep module set to 150–200ms between the Iterator output and the HTTP POST module.
• GHL Sub-Account Routing Conflicts: Managing 20+ clients from one Meta Business Manager? Add a Make.com Router module after the webhook catch, with each branch targeting a different GoHighLevel Location ID based on the Campaign ID or Ad Set ID in the Meta payload.
• Empty Custom Field Values: If a lead skips an optional question, Make.com receives a null in the field_data array. Wrap custom field mappings with ifempty() to substitute a blank string so a null doesn’t break the JSON structure.
• 401 Authentication Errors: First check the obvious: token in the Authorization header as Bearer, not the query string, with write access to Contacts on the correct Location. If that all checks out and it’s still 401ing, confirm the Version header is present — a missing Version header is the most common false-401 in v2.
• Leads reaching Make.com but never reaching GHL contacts: If your webhook logs show the payload arriving but the HTTP module errors on POST, check you’re posting to services.leadconnectorhq.com and not a copy-pasted rest.gohighlevel.com/v1/ URL from an older guide — see Section 2.

7. Round Robin Lead Distribution

The same webhook architecture handles round robin distribution across a sales team inside GoHighLevel. After the webhook catch and custom field flattening, add a Math module that tracks an incrementing counter stored in a Make.com data store. Each incoming lead increments the counter by one. A Router module reads the counter and routes the lead to the assigned rep’s contact ownership, cycling through the team sequentially with no manual reassignment.

For agencies running paid ads across multiple clients, the same Router pattern handles cross-account distribution — one Make.com scenario catches every lead from a master Facebook page and routes each to the correct sub-account based on the Ad Set ID in the Meta payload. Full router configuration in the GoHighLevel and Make.com integration guide.
